Product Description

Fairview's Architectural Linear 35 (AL35) profiles are flexible and strong enough to support double or triple-glazed glass. The combination of flush surfaces, square shapes and timber liners gives the Architectural Linear 35 suite a clean, modern aesthetic. Designed for residential environments where both value for money and performance are important.
Where higher performing openings are required, AL35 blends seamlessly with other Fairview Architectural ranges for maximum design advantages. The suite features optional flush sliding door tracks, and the capability to meet New Zealand residential performance standards.

Features:

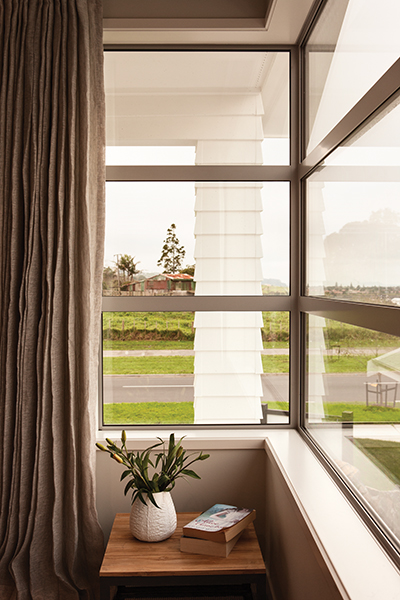

  • Full range of mullions and transoms including internal box stiffening or external fins.
  • Hinged door panels available in 77mm or 125mm stile widths.
  • Bi-fold doors can be bottom rolling with the weight carried on the sill; or top hung when the lintel is designed to receive the panel loads.

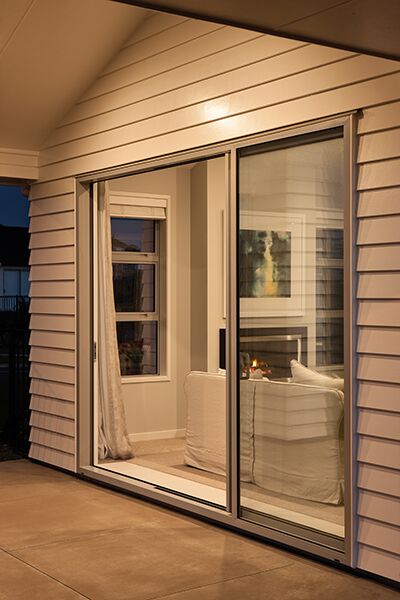

  • Sliding doors panels can span up to 2400mm height and 1500mm width, creating impressive openings. Heavy duty roller options manages panels up to 150kg.
  • Square glazing bead options for optimal aesthetic appearance.
  • Optional anodised tracks for long term performance.
  • Traditional New Zealand installation method using timber reveals.
  • Sashes can be added without expensive sub-frames.
  • Heavy duty mullion options.
  • Condensation drainage channel with anti-blow-back valve for high water egress performance.
  • 19mm weather facing flange.

Finishes/colour:

  • Large range of standard and non-standard powder coat colours available.
  • Anodising provides a matt metallic finish. Standard colour options are silver, black and bronze, 20 micron thickness. Other colours and thicknesses are also available.
  • EUROWOODTM range has a timber look. Available in a range of wood-grain finishes.
  • Fairview powdercoat their windows and doors using their own facilities, accredited to WANZ Enduro Colour Powder Coating Quality Standards.
  • 15 year powdercoating warranty on colour integrity and film integrity for use in most residential environments (Excludes commercial, high-rise and marine usage). Some conditions apply.

Technical and Environmental Benefits

Depending on the size of the unit, and when combined with high performance glass solutions, Fairview Architectural Linear 35 products can achieve good R-value results and WEERS stars, providing thermal performance improvement for your project.

Performance and test standards:

  • Tested to both conventional design parameters: NZS4211:2008 and AS2047 and to specific design criteria where project requirements have demanded higher levels of performance. In some cases simulating wind speeds in excess of 300km/h to test ultimate structural strength. Specific design criteria based on configurations and site requirements.
  • Tested in an international accredited laboratory and complies with international accreditation NZS/ISO/IEC 17025:1999.

Manufacturer and Supplier Information - Fairview Windows

Fairview began in 1968 and is still proudly owned by the same Kiwi family today. A hands-on company driven by the same passion to go the extra mile for their customers. From simple renovations to bespoke architectural homes, every project is different; every one being unique. Fairview understand New Zealand conditions and building standards, and design products in accordance with this.

Application and Purpose

Standard residential applications where value for money and performance are important. Suitable for mid-high end homes. Best when modern, flat aesthetic is required and timber reveals are needed. Designed to be integrated with other Fairview Architectural or Fairview Thermal ranges for maximum design advantages.

Installation and Maintenance

Full details on installation and maintenance are available from Fairview Systems or their manufacturers. All warranties are subject to adherence to the Fairview Care & Maintenance Guide. In some instances documented proof of maintenance may be required.

Care for aluminium joinery by using a mild soap, warm water and a quality soft-bristled brush or cloth. Dishwashing liquid is always handy and works well. Simply wash the entire frame with soapy water. Use clean water to rinse, and dry to avoid streaking.

Wash glass at the same time as the frames. Use warm water and soap. You can also use a specialised glass cleaner. Use a cloth, soft bristled brush or sponge. Then rinse with clean water. Remember to dry your glass with a clean cloth, paper towel or grit-free squeegee to finish. It isn’t clean until it’s dry.

Wash your hardware every month with a mild cleaner, like dishwashing liquid mixed with warm water. Adjust and lubricate your hardware as directed by supplier. Clean your hinges and window stays at the same time as your aluminium joinery, with a mild cleaner.

Fairview provide an easy to follow Care & Maintenance Guide includes full guidance for looking after the complete window and door system, including tips and advice for joinery, glass and hardware.
